| Lanyards |
|
|
Universal has a comprehensive and customized series of work positioning Lanyards. These Lanyards can be connected to the Lateral D-Rings on the work positioning Belts or Combination Harnesses and easily adjusted for their lengths to suit the application. |
|
- Universal Work Positioning Lanyards are tested and CE certified as per EN 358:1999.
- Breaking Strength min 15 kn.
- Conforms to EN 358:1999
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| WPL with Ring type Adjuster Ret: SF-WPL- 2401 |
| |
- Made of 12 mm dia polyester 3-strand Twjsted Rope.
- Has a manual Ring-type adjuster of forged alloy Steel.
- Maximum length of 2.0 mtr.
- Easy to connect Steel Karabiners -SF-1102 at both the ends for attachment.
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| WPL with Grip Adjuster Ref: SF-WPL- 2402 |
| |
- Made of l2mm dia polyester 3-strand Twjse Rope
- Has a convenient Rope-grab adjuster for easy length adjustment
- Maximum length of 2.0 mtr.
- Easy to connect Steel Karabiners SE-1102 at both the free ends for attachment
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| WPL with Grip Adjuster Ref: SF-WPL-2403 |
| |
- Made of 12mm dia Polyamide Kernmantle rope
- Has a convenient Rope-grab adjuster for easy length adjustment
- Maximum Length 2 mtr.
- Easy to connect Steel Karabiners SF-1102 at both ends for attachment
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Webbing Work Positioning Lanyard Ref: SF-WPL- 2404 |
| |
- Madeof3Ommwidepolyesterwebbing
- Manual Ring type adjuster of forged alloy steel
- Easy to connect Steel Karabiner SF-1102 at both the ends for attachment
- Maximum length of 2.0 mtr.
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| WPL with Ring Adjuster Ref: SF-WPL-2405 |
| |
- Made up of 12mm dia for polyamide Kernmantle rope
- Easy to connect Steel Karabiner SF-1102 at both the ends for attachment
- Manual Ring type adjuster made of forged alloy steel
- Maximum length of 2.0 mtr.
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| The Range of Universal Restraint Twisted Rope Lanyards are provided with the following features : |
|
|
|
- They are made up of 12mm dia polyester Twisted Rope.
- The spliced end is protected with a strong transparent covering sleeve. This not only protects the splicing, but also makes the splicing visible for easy inspection prior to use.
- The loops at the end are protected by an abrasion resistant thimble. This prevents the rope from being damaged by the metallic contact of the connector.
- The rope also has a coloured tracer strand which loses its colour in due course of time, to show that the Lanyard is now unfit for further use.
|
|
|
 |
|
|
|
|
- Universal offers a wide range of Twisted Rope Lanyards, having different configuration of connectors on the ends.
- They are available in lengths 10m, 15m, 18m, and 20m.
- All Lanyards with different combinations of connectors mentioned below are individually certified as per EN 354:2010, and have a minimum Breaking Strength of 22 kn.
|
| |
|
|
|
|
|
| This range of Lanyards is made from high quality Kernmantle Rope having the following features : |
|
|
|
- They are made up of Polyamide Kernmantle Rope (dia 12mm).
- They are cross stitched and are protected with a strong transparent covering sleeve. This not only protects the ends, but also makes the stitches visible for easy inspection prior to use.
- The loops at the end are protected by an abrasion resistant thimble. This prevents the rope from being damaged by the metallic contact of the connector.
- The rope also has a coloured tracer strand which loses it’s colour in due course of time, to show that the Lanyard is now unfit for further use..
|
|
|
 |
|
|
|
|
- Universal offers a wide range of Kernmantle Rope Lanyards, having different configuration of connectors on the ends.
- They are available in lengths 1.0m, 1.5m, 1.8m, and 2.0m.
- All Lanyards with different combinations of connectors mentioned below are individually certified as per EN 354 2010, and have a minimum Breaking Strength of 22 kn.
|
| |
|
|
|
|
|
| TUniversal offers a wide range of Webbing Lanyards made from high tenacity polyester yarn, having different configuration of connectors at the ends. |
|
|
|
- The Webbing Lanyards in this section are made up of 44 mm wide polyester webbing.
- The loops at the ends are protected by an abrasion resistant covering. This prevents the webbing from being damaged by the metallic contact of the connector.
- All Universal Lanyards are also supplied with any other hook on special request.
- They are available in lengths 10m, 15m, 18m, and 20m.
|
|
|
 |
|
|
|
|
- All Lanyards with different combinations of connectors mentioned below are individually certified as per EN 354:2010, and have a minimum Breaking Strength of 22 kn.
|
| |
|
|
|
|
|

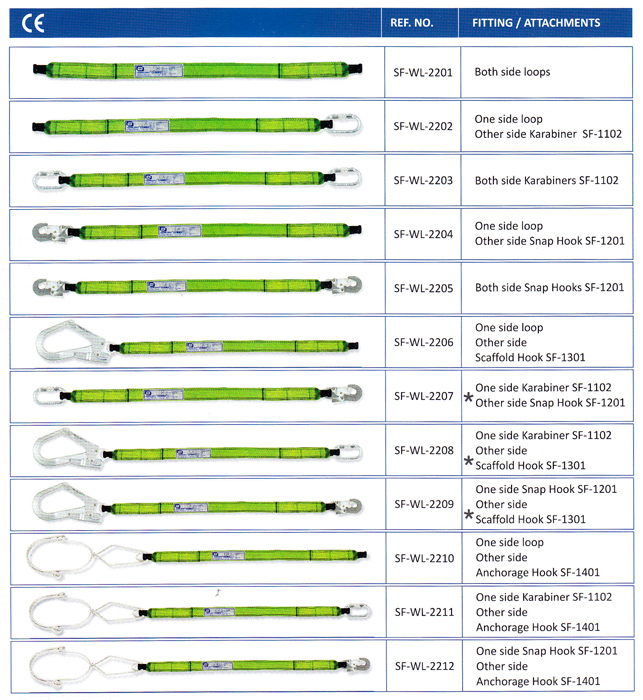

| Universal offers a wide range of Webbing Lanyards made from high tenacity polyester yarn, having different configuration of connectors at the ends. |
|
|
|
- The Webbing Lanyards in this section are made up of 30 mm wide polyester webbing.
- The loops at the ends are protected by an abrasion resistant covering. This prevents the webbing from being damaged by the metallic contact of the connector.
- All Universal Lanyards are also supplied with any other hook on special request.
- They are available in lengths 10m, 15m, 18m, and 2.Om.
|
|
|
 |
|
|
|
|
- All Lanyards with different combinations of connectors mentioned below are individually certified as per EN 354: 2010, and have a minimum Breaking Strength of 22kn.
|
| |
|
